Eazyfit Channel Side Fix Kit
MAGOL-9003SF KIT175
Available
download pdf filesDownloads
check delivery cost
login to save
ask a questionProduct Specifications
Product Description

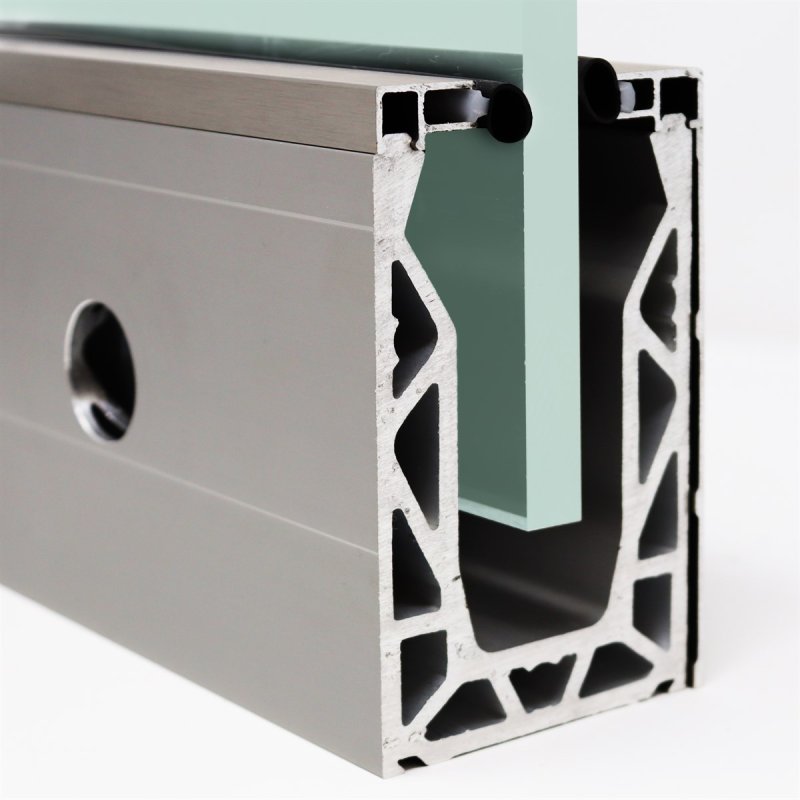

Our Eazyfit Frameless Aluminium Glass Balustrade Channel Kits hold between 12mm to 25.5mm glass panels safely in place for use on balustrades and partitions. This system, based on simplicity, allows the installer to easily adjust the glass panels once in place by adjusting the bolt screw to align the glass.
The quickest and most cost-effective frameless glass balustrade system to install. Designed to provide the greatest possible adjustment opportunities, this system enables each panel to be perfectly aligned during, or even after installation, we offer 0.36kN to 1.5kN loading weight variations.
This innovative and market-leading screw-clamp technology locks glass panels into position effortlessly, with four immobilizing fasteners per meter of the channel. Our stainless steel glass balustrades are the perfect fit for indoor and outdoor applications such as garden glass balustrades, Juliet balcony balustrades, glass balcony railings, glass stair balustrades, decking balustrades, and more. It can be glazed with toughened glass, toughened-laminated glass, or frosted glass. These kits include adjustable clamp kits, a top bead, and a spanner.
More glass thicknesses are available at higher loading weights.
Key Features
- Side-mounted channel system for a flush, frameless aesthetic
- Compatible with 12mm to 25.5mm thick glass panels
- Screw-clamp mechanism enables accurate alignment even post-installation
- Designed for use with toughened, laminated, or frosted glass
- Load tested to meet requirements from 0.36kN up to 1.5kN
- Supplied with clamp kits, a top bead, and a spanner for easy fitting
- Suitable for residential and commercial projects
- Manufactured to comply with UK safety standards for balustrades
Typical Uses
- Juliet balconies and compact external spaces
- Terraces, patios, and raised decking areas
- Internal glass stair balustrades and room dividers
- Commercial balcony installations with modern design requirements
- Garden and outdoor safety barriers
- Contemporary architectural schemes needing a minimalist finish
More glass thicknesses are available at higher loading weights.
NBS Specification
FAQ
What components are provided in the IMS Eazyfit Channel Side Fix Kit?
The kit includes the aluminium channel, a set of adjustable clamp kits, a top bead, and a spanner. These provide the essential parts for installation. Glass panels and fixings specific to your mounting surface will need to be sourced separately, depending on your project.
Which glass types can be installed with this side fix channel?
This system works with a variety of glass types, including toughened, laminated, and frosted panels. Toughened glass offers durability for outdoor spaces, laminated glass provides additional safety in commercial or high-traffic areas, and frosted glass is an ideal choice for projects where privacy is important.
Why choose a side-mounted channel instead of a base-fixed system?
Side-mounted channels are designed to maximise usable floor space and achieve a modern, frameless finish. They are particularly effective for Juliet balconies, terraces, and internal staircases, where keeping the floor area clear is a priority. This makes them a popular choice for architects and builders aiming for sleek, contemporary results.
Is the system adjustable once the panels are installed?
Yes. The screw-clamp design allows for post-installation adjustments. This means the installer can fine-tune the alignment of each panel on site, ensuring a perfectly straight balustrade line even if the base structure is not completely level.
What safety ratings does the IMS side fix channel meet?
The system is tested to handle loads from 0.36kN to 1.5kN, depending on the selected glass thickness. This ensures it meets the requirements for domestic installations as well as certain light commercial applications. Always check the project?s specific regulatory needs to confirm compliance.
Can it be used in outdoor projects?
Yes, the Eazyfit Channel Side Fix Kit is suitable for outdoor use. Its durable aluminium profile and corrosion-resistant design make it ideal for balconies, terraces, and garden installations. With the correct choice of glass and regular maintenance, the system will retain both safety and visual appeal over the long term.
