Roof Edge Protection

A well-designed roof edge protection system provides collective fall prevention for anyone working at height. IMS supplies modular, compliant roof edge protection that is quick to install, protects roof membranes, and delivers the rigidity you need for routine access, planned maintenance and project work.

Read more

A well-designed roof edge protection system provides collective fall prevention for anyone working at height. IMS supplies modular, compliant roof edge protection that is quick to install, protects roof membranes, and delivers the rigidity you need for routine access, planned maintenance and project work.

Our range covers freestanding counterweighted guardrails for flat roofs, fixed systems for parapets and upstands, fold-down solutions where sightlines matter, and accessories such as toe boards, self-closing gates, corner returns and terminations. Systems are supplied in galvanised steel with optional powder-coated finishes and are designed for long service life with minimal upkeep.No content on the page

Key features and benefits

  • Collective protection that does not rely on user PPE or training.
  • Fast modular installation using slip-joint fittings and pre-set uprights.
  • Non-penetrative options that preserve waterproofing and warranties.
  • Robust construction with galvanised finishes for weather resistance.
  • Configurable layouts for corners, returns, level changes and terminations.
  • Designed to meet UK best practice and relevant performance standards.

Typical applications

  • Routine plant access on flat roofs and terraces.
  • Perimeter protection during refurbishment projects.
  • Demarcation and guarding around PV arrays, AHUs and rooflights.
  • Temporary or permanent routes for inspection and cleaning.
  • Safe access on education, healthcare, commercial and industrial sites.

Read less

View Roof Edge Protection FAQS

FILTERS28 products
  • display as grid Grid
  • display as list List
Filter
Close
Metric NB
Handrail Tube Diameter
Colour
Price
Additional Filters
Sort By







Per Page

28 products

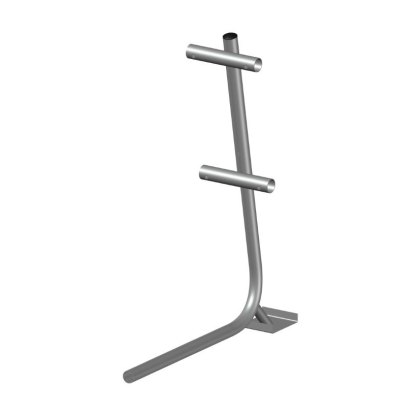

Eazy Roof - Main Support Upright
Eazy Roof - Main Support Upright
The Main Support Upright is used in the 'Eazy Roof' Freestanding Roof Edge Protection System to provide support for the 2.5m Cross Rails (supplied seperately). It comes with an adjustable 'Top Riser' unit allowing the overall height to vary between 1m and 1.3m while allowing the top and middle rails to be evenly spaced at 500mm. It requires a 20kg Counterweight to act as a counter balance (supplied...
£94.99 inc VAT

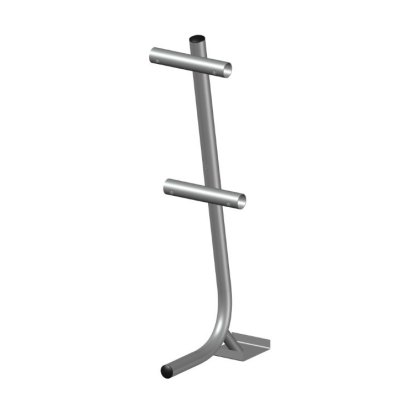

Eazy Roof - Intermediate Support Upright
Eazy Roof - Intermediate Support Upright
The Intermediate Support Upright is used in the 'Eazy Roof' Freestanding Roof Edge Protection System to provide support for the Cross Rails between Main Support Uprights. It comes with an adjustable 'Top Riser' unit allowing the overall height to vary between 1m and 1.3m while allowing the top and middle rails to be evenly spaced at 500mm. The distance from the back of the foot and...
£90.00 inc VAT
Eazy Roof - Cross Rail (2.5m)
Eazy Roof - Cross Rail (2.5m)
The 2.5m Cross Rail is a steel tube measuring 2500mm in length and an essential component of an 'Eazy Roof' Freestanding or Fixed Roof Edge Protection System. It has an outside diameter of 48.3mm and a wall thickness of 1.5mm. It is supplied coating with a mix of zinc, aluminium and magnesium, giving it 20 times the corrosion resistance of pre-galvanised tube. Key Features 2500mm length cross rail...
£26.40 inc VAT

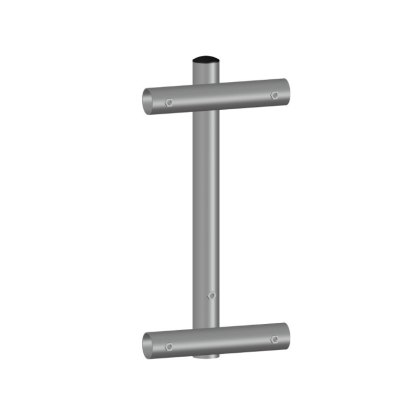

Eazy Roof - Top Riser
Eazy Roof - Top Riser
The Top Riser slides on and attaches to the top of a support upright using a grub screw, as part of the 'Eazy Roof' Freestanding or Fixed Roof Edge Protection System. It allows the top and middle rails to be evenly spaced at 500mm whilst allowing the overall height of the rails to be adjusted to suit different applications. Manufactured from hot dipped galvanised steel. Key features: Height adjustable...
£52.80 inc VAT

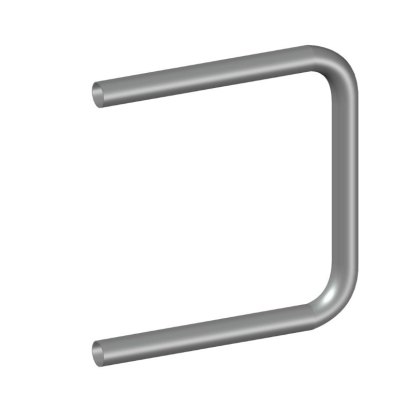

Eazy Roof - Double End Termination (180 Deg)
Eazy Roof - Double End Termination (180 Deg)
The Double End Termination is a pre-formed 180 degree tube, measuring 550mm x 520mm, that inserts into the Top Riser Unit of the 'Eazy Roof' Freestanding or Fixed Roof Edge Protection System. It is a quick and convenient way of terminating a run of Eazy Roof rails or can be used in conjunction with the Eazy Roof Half Height Spring Loaded Gate (contact us for details). It comes with a corrosion resistant...
£25.20 inc VAT
Eazy Roof - Top Support Upright
Eazy Roof - Top Support Upright
The Top Fixed Support Upright is designed to be secured to the top of a roof deck or parapet as part of the Eazy Roof Fixed Roof Edge Protection System. It accepts the 'Top Riser' (supplied separately). The base measures 150mm x 150mm and has 4 x 11mm diameter holes. The upright tube has a 48mm outside diameter. It is manufactured from hot dipped galvanised steel. If attaching to a metal sheet roof,...
£38.40 inc VAT

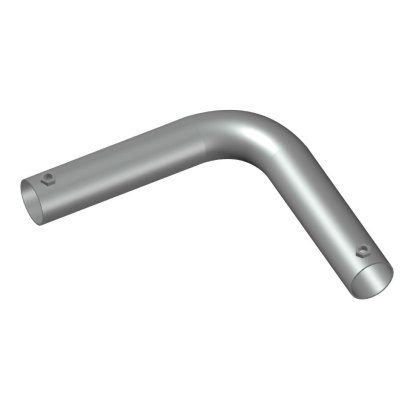

Eazy Roof - Swept Bend (90 Deg)
Eazy Roof - Swept Bend (90 Deg)
The Swept Bend is a 90 degree corner suitable for use with the 'Eazy Roof' Freestanding or Fixed Roof Edge Protection System. It fits a 48.3mm tube which is securely attached using grub screws. It is manufactered from hot dipped galvanised mild steel tube. Key Features: Part of Eazy Roof System Easy to install Corrosion-resistant
£20.40 inc VAT

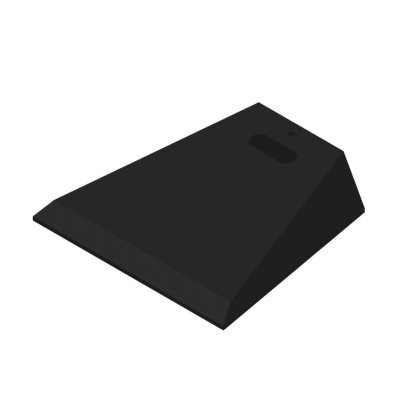

Eazy Roof - Counterweight (20kg)
Eazy Roof - Counterweight (20kg)
The 20kg Counterweight measures 490mm in length and 540mm wide. It is designed to be attached to each of the Main Support Uprights in the 'Eazy Roof' Freestanding Roof Edge System, and is fixed in place with a small zinc-coated grub screw. The weight provides the necessary counterbalance to prevent the system from being moved. It is manufactured from 100% recycled PVC compound. Key Features: UK manufactured...
£36.00 inc VAT
101-D Short Tee Clamp 48.3mm
101-D Short Tee Clamp 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. This tube clamp is often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture. Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten....
£7.04 inc VAT
104-D Long Tee Clamp 48.3mm
104-D Long Tee Clamp 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. This tube clamp is often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture. Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten....
£12.29 inc VAT
116-D Corner Mid Rail Clamp 48.3mm
116-D Corner Mid Rail Clamp 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These tube clamp fittings are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture. Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to...
£9.71 inc VAT
119-D Cross Mid Rail Clamp 48.3mm
119-D Cross Mid Rail Clamp 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These tube clamp fittings are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture. Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to...
£9.37 inc VAT
125-D 90 Degree Elbow Clamp 48.3mm
125-D 90 Degree Elbow Clamp 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
5
£9.01 inc VAT
128-D Corner Top Rail 48.3mm
128-D Corner Top Rail 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£13.03 inc VAT
131-D Wall Flange 48.3mm
131-D Wall Flange 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£10.81 inc VAT
132-D Base Flange 48.3mm
132-D Base Flange 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£14.66 inc VAT
135-D Clamp-on Tee 48.3mm
135-D Clamp-on Tee 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£11.34 inc VAT
143-D Handrail Wall Bracket 48.3mm
143-D Handrail Wall Bracket 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£8.48 inc VAT
145-D Railing Side Support 48.3mm
145-D Railing Side Support 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£19.09 inc VAT
146-D Triangular Side Palm 48.3mm
146-D Triangular Side Palm 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£10.98 inc VAT
149-D External Sleeve Joint 48.3mm
149-D External Sleeve Joint 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£7.50 inc VAT
161-D Crossover Clamp 48.3mm
161-D Crossover Clamp 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These tube clamps are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture. This tube clamp incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten....
£6.84 inc VAT
166-D Adjustable Knuckle 48.3mm
166-D Adjustable Knuckle 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£19.62 inc VAT
169-D Swivel Wall Fixing 48.3mm
169-D Swivel Wall Fixing 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£11.66 inc VAT
173-D Single Swivel Combination 48.3mm
173-D Single Swivel Combination 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
5
£11.34 inc VAT
173-FD Female Single Swivel 48.3mm
173-FD Female Single Swivel 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£6.55 inc VAT
173-MD Male Single Swivel 48.3mm
173-MD Male Single Swivel 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£5.00 inc VAT
176-D - Side Outlet Tee 48.3mm
176-D - Side Outlet Tee 48.3mm
Our Eazyclamps are used to join pipes and tubes to create structures. These are often used to construct handrails and scaffolding but can also be used for clothing rails, and display stands with the rising popularity of industrial chic furniture.Tube clamps are incredibly easy to use as the components are joined by a grub screw which simply requires an Allen key or Hex key to tighten. No other tools...
£12.90 inc VAT

Roof Edge Protection FAQs

Can I install roof edge protection without penetrating the waterproofing?

Yes. Freestanding counterweighted systems distribute load through roof-safe bases and do not require fixings into the membrane, making them suitable where warranties must be preserved.

What post spacing should I use?

Typical centres range from 1.5 m to 2.0 m depending on system type, exposure and any toe board requirement. Check the manufacturer data and wind calculations before finalising spans.

Do I need toe boards as well as guardrails?

Toe boards are recommended where there is a risk of tools or materials rolling off the roof or where public areas exist below. They are also useful at plant edges and near rooflights.

How do fold-down systems lock in the upright position?

Hinged uprights include positive locking hardware. When raised, the post is secured with a mechanical latch or pin, providing the same duty performance as a fixed upright.

Can I run guardrail around solar PV arrays?

Yes. Maintain manufacturer-specified clearances, avoid shading where possible and use weighted bases positioned to suit panel layout. Gate modules can create defined access points for maintenance.

What inspections are required after installation?

Carry out a documented handover inspection on completion, then periodic checks—typically annually or in line with your site’s safety regime. Inspect fixings, uprights, bases and any moving parts such as gates.

How are corners and terminations handled?

Use corner kits or adjustable elbows to maintain continuity and stiffness. Terminations can be returned to the parapet or finished with ballast arms to resist uplift at end bays.

Can systems be retrofitted to an older roof?

In most cases, yes. A survey will confirm membrane condition, load paths and any remedial work needed. Freestanding systems are often chosen for retrofit to avoid penetrations.
