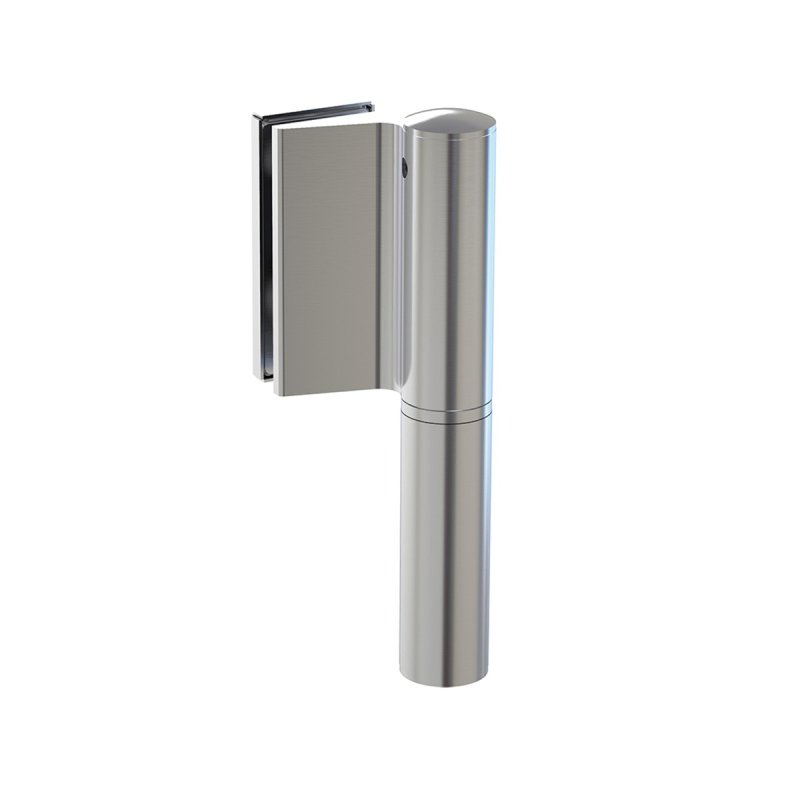

Torpedo Self Closing Hinge - 180' Stop Glass-to-Wall

Our Torpedo Self Closing Hinge – 180° Stop Glass-to-Wall is engineered to deliver strength, precision, and long-lasting performance. Designed for use with frameless glass doors, this hydraulic hinge provides smooth, controlled closing and reliable alignment every time.

Built with a durable aluminium body and advanced hydraulic mechanism, this hinge ensures quiet operation and a consistent soft close. The 180° opening angle with stops at +90° and +180° makes it a versatile choice for commercial and residential applications, including offices, retail spaces, hospitality environments, and modern interiors.

The hinge is suitable for glass thicknesses from 8mm to 21.52mm, with a maximum door weight of 100kg (when using two hinges) and a door width of up to 1000mm. For optimal performance and safety, no more than two hinges should be installed per door.

Whether you’re fitting new frameless glass doors or upgrading existing installations, this self closing glass door hinge offers an efficient and professional solution.

Key Features

• High-quality hydraulic mechanism for smooth, soft close operation.
• 180° opening range with stop points at +90° and +180°.
• Designed for glass-to-wall installations.
• Suitable for 8–21.52mm glass thicknesses.
• Supports door weights up to 100kg with two hinges.
• Maximum recommended door width: 800–1000mm.
• Constructed from robust aluminium for durability.

Typical Uses

• Frameless office glass doors.
• Retail and showroom entrances.
• Hospitality interiors, including restaurants and hotels.
• High-end residential projects with frameless partitions.
• Applications where wall-to-glass hinges are required for strength and aesthetics
