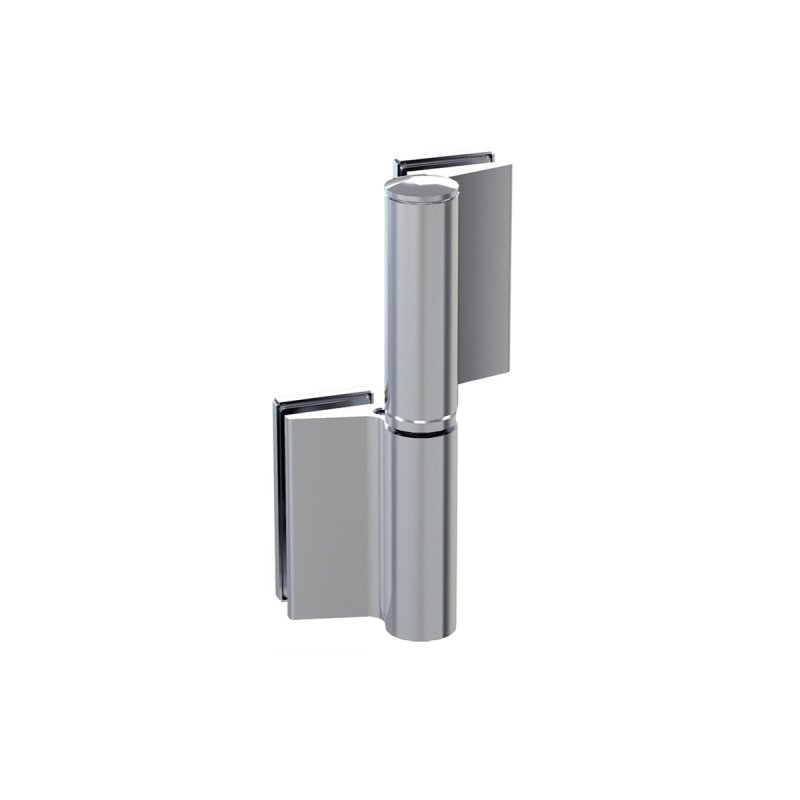

Torpedo Self Closing Hinge - 180' Stop Glass-to-Glass
MAGPF-835E50RISS
Available
check delivery cost
login to save
ask a questionProduct Description
Our Torpedo Self Closing Hinge – 180° Stop Glass-to-Glass is a high-performance solution for frameless glass doors, offering smooth and reliable self-closing functionality. Designed with a hydraulic mechanism, these glass door self closing hinges provide adjustable closing speed and constant braking control, ensuring both safety and convenience in commercial and residential applications.
Engineered in durable aluminium, this hinge allows for glass-to-glass door connections with a full 180° opening range and stop positions at +90° and +180°. With a load capacity of up to 100kg when using two hinges, it is suitable for a wide range of frameless glass door installations where precision and strength are required.
Key Features
- Hydraulic self closing glass door hinges with adjustable closing speed.
- Constant braking control for smooth, secure door movement.
- 180° glass-to-glass hinges with stop at +90° and +180°.
- Manufactured in high-quality aluminium for long-lasting performance.
- Suitable for 8 – 21.52mm glass thickness.
- Maximum door weight: 100kg (using 2 hinges).
- Door width range: 800–1000mm (with 2 hinges).
- Recommended maximum of 2 hinges per door for optimal performance.
Typical Uses
- Frameless glass doors in offices and commercial spaces.
- High-traffic showrooms, retail environments, and reception areas.
- Residential interiors where sleek, modern glass doors are required.
- Glass partitions and enclosures needing soft close glass door hinges for safety and style.
FAQ
What is the difference between self closing and soft close glass door hinges?
Self closing hinges use a spring or hydraulic mechanism to automatically return the door to the closed position. Soft close glass door hinges provide controlled braking to prevent slamming. The Torpedo hinge combines both features, offering adjustable self-closing with a smooth, soft-close action.
Can these hinges be used on heavy frameless glass doors?
Yes. When installed with two hinges, the Torpedo Self Closing Hinge can safely support doors up to 100kg in weight and up to 1000mm in width, making it suitable for most commercial and residential frameless glass door projects.
What glass thicknesses are compatible with these glass-to-glass door hinges?
This hinge is designed for glass panels between 8mm and 21.52mm thickness, giving flexibility for a range of applications from lightweight interior doors to heavier laminated glass.
< h3>Do these hinges allow for full 180-degree opening?Yes. The 180? glass-to-glass hinges allow the door to open completely, with stops at +90? and +180?, making them ideal for spaces requiring wide door access.
Are the Torpedo Self Closing Hinges suitable for exterior installations?
They are primarily designed for interior frameless glass doors, but can also be used in covered or sheltered exterior applications, provided that they are not exposed to constant weathering.
