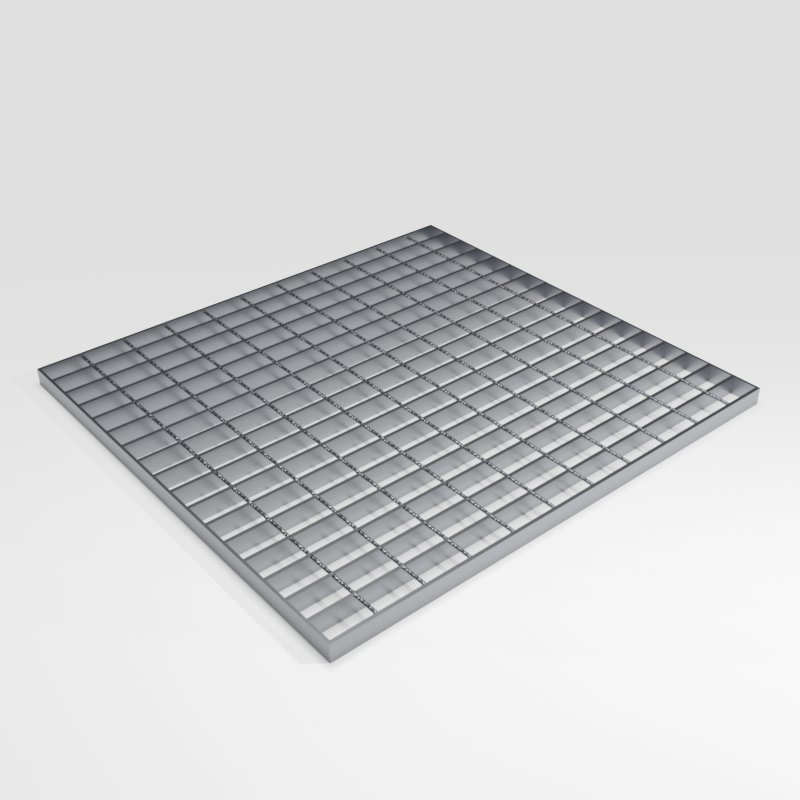

Open Steel Utility Flooring 6000mm x 1000mm (25 x 5 x 41 x 100) - Galvanised
MFOMP-25-5-41/100-PLA-GA
Available
download pdf filesDownloads
check delivery cost
login to save
ask a questionProduct Specifications
Product Description
Our Open Steel Utility Flooring 6000mm x 1000mm (25 x 5 x 41 x 100) – Galvanised is designed for safe, durable, and efficient use across industrial and commercial environments. Manufactured from galvanised steel, this metal flooring solution offers exceptional strength, slip resistance, and long-lasting corrosion protection, making it suitable for both indoor and outdoor applications.
The open steel flooring design allows dirt, liquids, and debris to pass through, maintaining cleaner walking surfaces and reducing the risk of hazards. It is widely used as utility flooring in factories, warehouses, treatment plants, and construction projects, where reliability and load-bearing capacity are essential.
Featuring 6mm square twisted transverse bars resistance-welded into the top surface, the metal floor ensures load-bearing bars remain upright at consistent intervals. While the transverse bars provide structural stability, the main strength is carried by the primary load-bearing bars. This construction delivers a dependable and cost-effective flooring solution for work platforms, walkways, access areas, and trench covers.
Key Features
- Manufactured from galvanised steel for durability and corrosion resistance.
- Open flooring design for drainage, ventilation, and reduced debris build-up.
- 6mm square twisted transverse bars welded to maintain consistent spacing.
- Suitable for heavy-duty applications, including industrial platforms and trench covers.
- Dimensions: 6000mm x 1000mm with 25 x 5 x 41 x 100 configuration.
Typical Uses
- Work platforms in factories and workshops.
- Walkways and access routes in industrial plants.
- Flooring over shallow trenches and channels.
- Protective covering for solid floors in treatment works.
- Heavy-duty metal floor solutions for warehouses and construction projects
FAQ
How should open steel utility flooring be fixed on-site?
For secure installation, flooring sheets are usually fixed with saddle clips or welded directly to the support steel. Fixing choice depends on whether future removal is required for maintenance or reconfiguration.
What loading capacity can this flooring handle?
The main load-bearing strength comes from the 25 x 5mm bars, spaced at 41mm centres. This configuration provides excellent weight distribution for heavy foot traffic and equipment. Engineers should refer to load tables or structural calculations for exact capacity based on span.
How does galvanisation impact service life?
The hot-dip galvanised finish ensures long-term resistance to rust, even in outdoor or damp conditions. In most industrial environments, galvanised flooring can achieve a service life of 20+ years with minimal maintenance.
What span is recommended for this configuration?
The 25 x 5 x 41 x 100 specification is best suited to shorter spans where frequent support beams are available. For larger unsupported spans, heavier bar thicknesses or alternative mesh sizes are recommended.
Can this flooring be cut or modified on-site?
Yes, the sheets can be cut with saws or grinders to fit around columns, equipment, or service ducts. Any cut edges should be treated with zinc-rich paint to maintain corrosion resistance.
