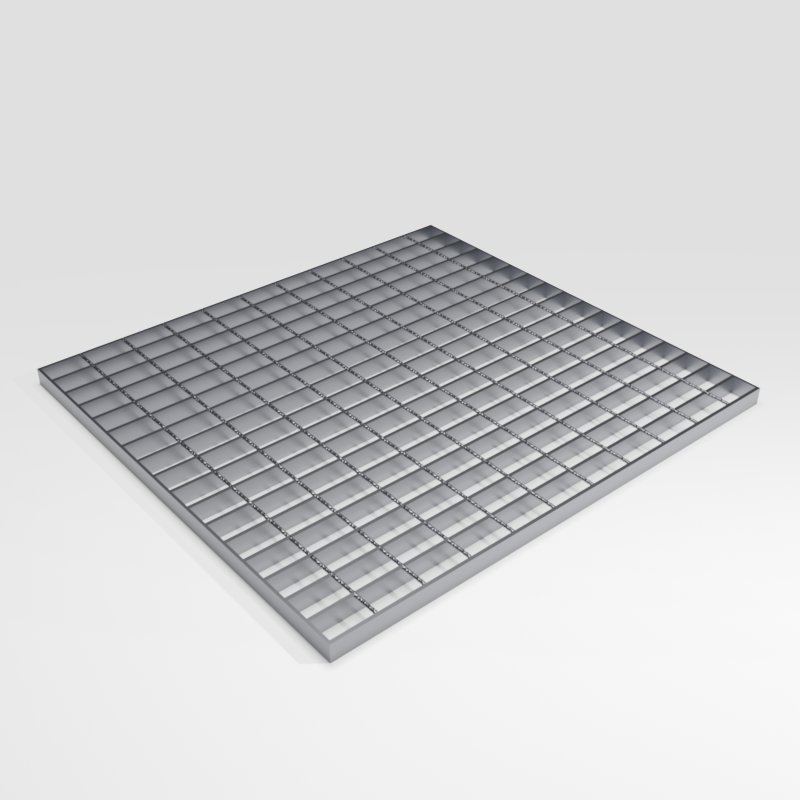

Open Steel Utility Flooring 6000mm x 1000mm (25 x 3 x 41 x 100) - Galvanised
MFOMP-25-3-41/100-PLA-GA
Available
download pdf filesDownloads
check delivery cost
login to save
ask a questionProduct Specifications
Product Description
The Open Steel Utility Flooring 6000mm x 1000mm (25 x 3 x 41 x 100) – Galvanised is designed for safe, long-lasting performance in industrial environments. Manufactured using 25mm x 3mm load bars spaced at 41mm, and twisted 6mm square transverse bars at 100mm intervals, this metal sheet flooring provides secure footing while allowing for drainage and airflow.
This configuration is widely used for metal sheet floors in access platforms, service walkways, and trench covers. The galvanised finish increases corrosion resistance, making it suitable for wet or exposed conditions, such as treatment plants or outdoor loading areas.
Each panel measures 6000mm x 1000mm, allowing for efficient coverage in large installations.
Typical Applications
- Work platforms and service walkways
- Maintenance access across shallow trenches
- Mezzanine floors in warehouses and factories
- Water treatment and drainage zones
- Outdoor flooring where corrosion resistance is needed
- General-purpose metal flooring sheets for plant and facility fit-outs
FAQ
Can this metal sheet floor be used outdoors?
Yes, the galvanised finish is suitable for external use. It resists rust and corrosion, making it a solid choice for exposed platforms, walkways, and trench covers.
What is the meaning of 25 x 3 x 41 x 100 in this context?
25mm is the height of the load bar, 3mm is the thickness, 41mm is the pitch between load bars, and 100mm is the pitch between transverse bars. This format balances strength and drainage.
Are the transverse bars load-bearing?
No. The transverse bars keep the load bars aligned but are not designed to carry weight.
Can the panels be cut to size?
Yes. They can be cut on site using suitable tools. If cut, it?s recommended to recoat exposed edges to maintain corrosion protection.
What type of load is this floor suitable for?
It is designed for pedestrian use and light trolleys. For heavier loads or machinery, use a flooring profile with a thicker bar or reduced span.People who bought this also bought...
