2500 x 1250 x 6mm Hot Rolled Plate - BSEN10025-2 S275JR
Save 10% on the IMS App
The IMS App is here to make your shopping experience even better!
This month we are offering IMS App users an exclusive 10% off your entire steel purchase. The discount will be added automatically at checkout.
Download the app today
*Not valid with other promotions.
FHRSH-6-S275-25
Available
Bulk discounts available:
Buy 3 or more for £326.76 each
Buy 5 or more for £300.26 each
Buy 10 or more for £273.77 each
Buy 20 or more for £247.28 each
check delivery cost
login to save
ask a questionProduct Specifications
Product Description

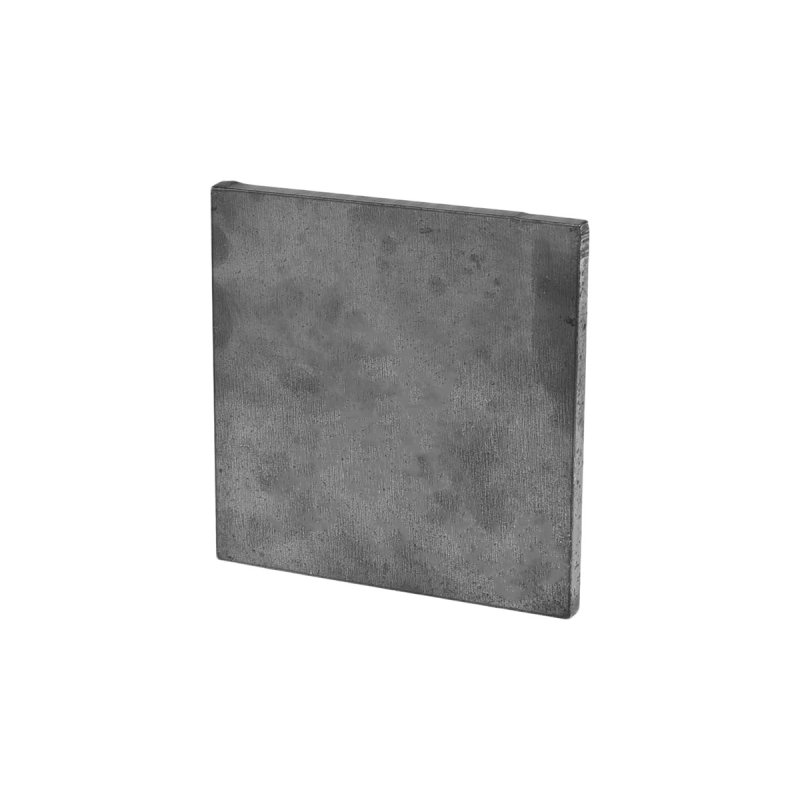

The 2500 x 1250 x 6mm Hot Rolled Plate – S275JR is a structural steel plate produced to BS EN 10025-2 standards. Manufactured using the hot rolling process, this plate offers excellent formability, weldability, and strength, making it suitable for a wide range of fabrication and structural applications.
Made from S275JR steel, this plate has a minimum yield strength of 275 MPa and is a commonly used general-purpose structural grade. The ‘JR’ designation confirms impact testing at 20°C, making it suitable for use in standard ambient conditions. This grade of S275 is ideal for projects that require reliable performance under moderate loads and consistent mechanical properties.
With dimensions of 2500mm x 1250mm and a 6mm thickness, this steel plate weighs approximately 147.19kg and is regularly specified in construction, manufacturing, and engineering environments.
Key Features
- Dimensions: 2500 x 1250 x 6mm Hot Rolled Plate
- Grade: BSEN10025-2 S275JR steel
- Weight: Approx. 147.19kg per plate
- Excellent weldability and machinability
- High strength with a yield of 275 MPa
- Cost-effective and versatile for general fabrication
- Impact-tested at room temperature (JR designation)
- Suitable for cutting, drilling, bending, and forming
Where the 2500 x 1250 x 6mm Hot Rolled Plate – S275JR Is Used
- Structural steelwork and framing
- Plate fabrication and general engineering
- Base plates and stiffeners in steel structures
- Agricultural and construction machinery
- Vehicle bodies, chassis, and trailers
- Bracing, supports, and custom steel fabrications
- Projects requiring reliable S275JR steel with consistent quality
FAQ
What does S275JR mean?
S275JR is a structural grade of steel defined by the BS EN 10025-2 standard. ?S275? indicates a minimum yield strength of 275 MPa, while ?JR? denotes impact testing at +20?C. It?s widely used in general construction and engineering.
Is this hot rolled plate easy to weld?
Yes. S275JR steel offers excellent weldability and is compatible with MIG, TIG, and MMA welding methods. It can also be cut, bent, and drilled using standard workshop equipment.
Can I use this plate outdoors?
Yes, but for exposed environments, it's recommended to apply a protective coating (such as paint or galvanising) to protect the steel from corrosion. S275 is not a weathering steel.
Is this steel plate suitable for structural load-bearing applications?
Yes. The 2500 x 1250 x 6mm Hot Rolled Plate is often used in load-bearing applications, provided it is specified correctly by a structural engineer. It?s commonly used in framing, bracing, and fabrication.
Do you offer cut-to-size options for this plate?
Yes. IMS can supply S275JR steel plates in standard stock sizes or cut to your required dimensions. Contact us for bespoke cutting services or bulk orders.
