200 x 90 x 30KG Parallel Flange Channels - BSEN10025-2 S355JR
The heavier your order, the heavier the savings!
Don't just buy steel—buy smart with our Bulk Sale! You can achieve up to 25% off your entire steel order when you reach the 2000kg tier (with discounts starting at 300kg). It's simple: the heavier your order, the heavier the savings. Stop settling for less than 25% off your essential materials. This is a limited-time opportunity—start loading your basket now!
Discount Applied in Checkout
LHPFC-200-90-30-S355
Available
Bulk discounts available:
Buy 6 or more metres at £53.46 per metre
check delivery cost
login to save
ask a questionProduct Specifications
Product Description

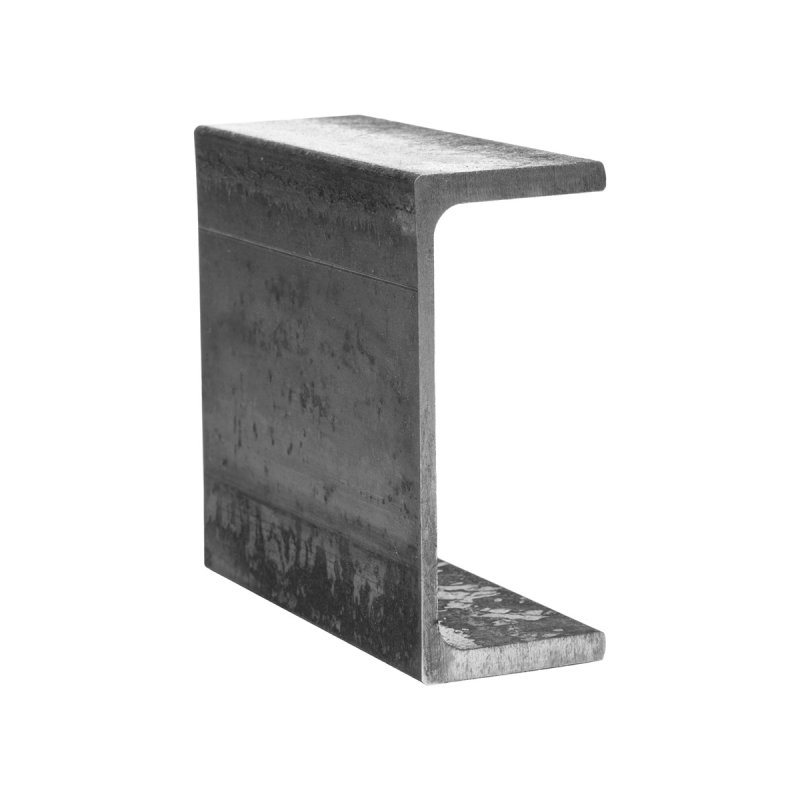

The 200 x 90 x 30KG Parallel Flange Channel is a reliable structural steel section made to BS EN 10025-2 S355JR standards. Designed for high-load environments, this 200 x 90mm profile offers excellent strength, stability, and ease of fabrication, making it a go-to choice for structural engineers and contractors working on demanding construction projects.
Thanks to its parallel flange design, this section provides uniform contact surfaces, simplifying bolting and welding during installation. Weighing 30kg per metre, this channel delivers robust support where needed—ideal for structural frames, building reinforcements, lintels, and more. The high-yield S355JR grade steel ensures long-term durability and structural performance, even under continuous stress.
Its size and consistent geometry make it a practical solution for projects requiring precision and strength, from mezzanine floor systems to heavy machinery platforms.
Key Features
- Profile dimensions: 200mm height x 90mm flange width
- Unit weight: 30kg per metre – excellent for high-stress applications
- Steel grade: S355JR – high yield strength for reliable performance
- Straight, parallel flanges – easier alignment and fixing
- Conforms to BS EN 10025-2 – suitable for structural use in the UK
Common Applications
- Steel frameworks and structural frames
- Support beams in building infrastructure
- Bracing elements and column supports
- Bridge components and marine structures
- Mezzanine floors, lintels, and heavy platforms
FAQ
Why use a parallel flange channel instead of a traditional U-channel?
The straight, parallel flanges provide better surface contact for bolting or welding, ensuring easier alignment with flat structures. This makes PFCs ideal in construction environments that require consistent joining with other steel components.
Is the 200 x 90 x 30KG section suitable for outdoor or marine projects?
Yes, provided it is appropriately treated or galvanised for corrosion resistance. S355JR-grade steel is suitable for use in exposed environments, including outdoor structural frameworks, bridges, and marine support structures.
Can this section be modified on-site?
Yes. The 200 x 90 section can be drilled, cut, or welded using standard steel tools. Always follow proper safety procedures and use the right equipment to preserve the structural integrity of the steel during modification.
What is the weight of a full 7.5m length?
At 30kg per metre, a full 7.5m length weighs approximately 225kg. This is useful to keep in mind for transportation planning and structural calculations.
Is this suitable for high-load mezzanine applications?
Definitely. The robust profile and high yield strength make this section ideal for mezzanine structures, especially where heavy equipment or palletised goods are involved.
