120 x 120 x 10mm - 6m Mild Steel Angles - BSEN10025-2 S275JR
Save 10% on the IMS App
The IMS App is here to make your shopping experience even better!
This month we are offering IMS App users an exclusive 10% off your entire steel purchase. The discount will be added automatically at checkout.
Download the app today
*Not valid with other promotions.
LHANG-120-120-10-S275
Available
Bulk discounts available:
Buy 5 or more for £196.56 each
Buy 19 or more for £131.04 each
check delivery cost
login to save
ask a questionProduct Specifications
Product Description

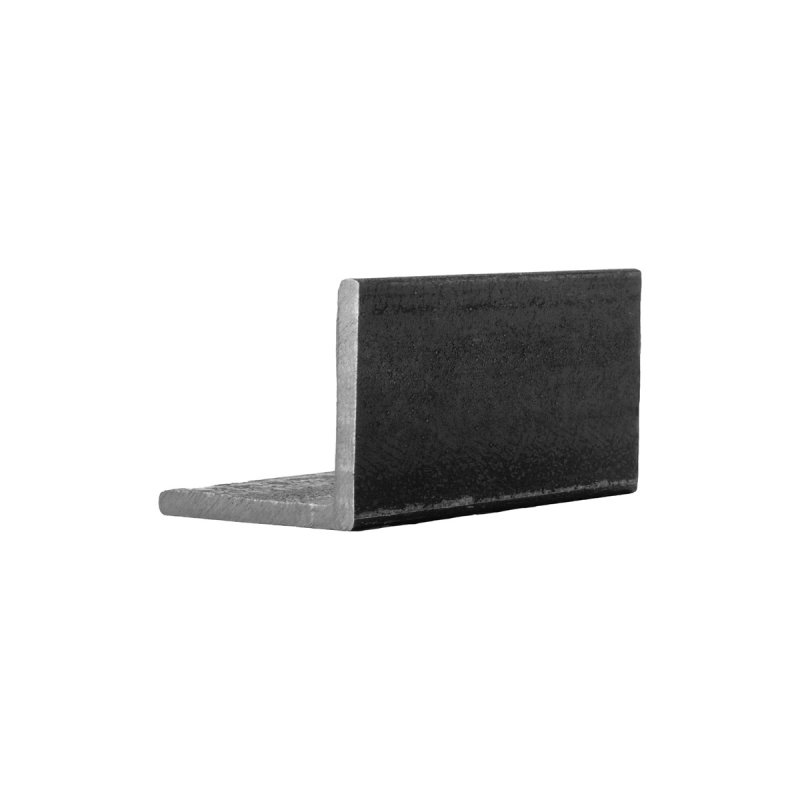

The 120 x 120 x 10mm mild steel angle is a reliable structural product manufactured from S275JR steel and certified to BS EN 10025-2 standards. With equal-length sides forming a 90° angle, this mild steel angle bar is ideal for use in load-bearing applications across construction, fabrication, and general engineering.
Supplied in 6m lengths and with a robust 10mm thickness, this mild angle steel offers excellent structural integrity and is well-suited for frameworks, supports, platforms, and machinery bases. Its equal angle profile ensures even load distribution, making it a preferred choice for both functional and architectural steelwork.
Key Features
- Size: 120mm x 120mm x 10mm thick – for strength and rigidity
- Length: Supplied in 6-metre lengths for on-site cutting and fabrication
- Material: S275JR grade mild steel – offers strength and versatility
- Form: Equal angle – ensures uniform load handling
- Compliance: BS EN 10025-2 standard – suitable for UK structural applications
- Finish: Supplied in mill finish – ready for painting or coating as required
Typical Uses
- Structural steel frames and load-bearing supports
- Agricultural equipment and fabrication work
- General steel fabrication and custom builds
- Reinforcements for industrial and commercial construction
- Architectural installations requiring strong, clean lines
FAQ
Is the 120 x 120 x 10mm mild steel angle suitable for welding?
Yes, S275JR mild steel is highly suitable for welding. This 10mm thick angle can be joined using standard MIG, TIG, or MMA welding processes. Ensure surfaces are clean and, where needed, bevel the edges to improve weld penetration and quality.
Can I use this steel angle in outdoor structural work?
You can, though for long-term outdoor applications we recommend applying a protective coating or galvanising the steel to prevent corrosion. While mild steel is strong, it can oxidise if left untreated in damp or exposed environments.
Is on-site cutting and drilling possible?
Definitely. This section can be cut using standard tools such as angle grinders or metal saws, and drilled with appropriate high-speed steel drill bits. As always, ensure correct handling and safety practices during fabrication.
What does a 6-metre length of 120 x 120 x 10mm angle weigh?
The total weight is approximately **112.8 kilograms** per 6m length. This is useful for planning logistics, structural calculations, and manual or machine handling requirements.
Why choose an equal angle over an unequal angle section?
Equal angles, such as this one, are excellent where balanced structural support is needed on both legs of the angle. Unequal angles are better for space-constrained assemblies or when load forces are not evenly distributed.
