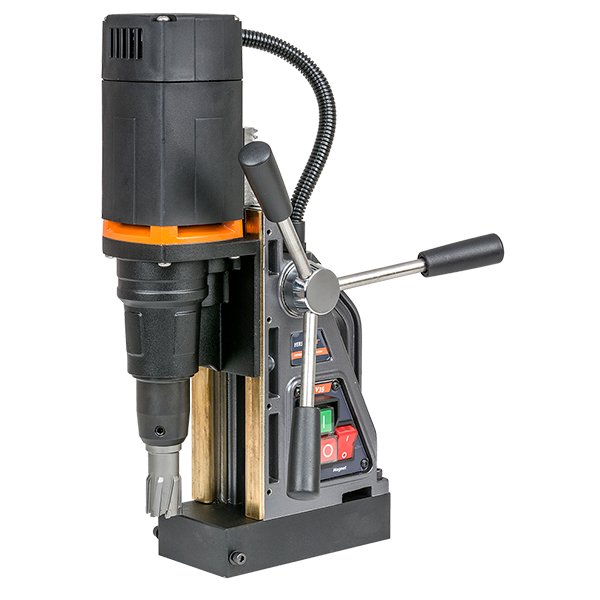

HMT V35 Versadrive Magnetic Drill Machine Kit, 110 Volt

MXDRI-850035-110

available Available

Please enter your postcode to check available services:

Check available services

£683.28 inc VAT

Show prices ex VAT

up
down
Product Specifications
Depth
200
Length
600mm
Width
390
Product Description

The HMT VersaDrive V35 is the first UK Built portable drilling machine designed for high-performance, low-maintenance, industrial quality drilling up to 35mm diameter. It delivers constant performance in the most challenging drilling environments and fabrication conditions. This machine fills a gap in the market for extremely light weight, high drilling speed, and long stroke to accept a wide range of VersaDrive Tooling such as twist drills, countersinks, drillsinks, step drills and more.

With a 140mm stroke, maximum cutter length of 110mm and seamless integration with the VersaDrive® modular cutting system, it offers the most flexibility of any compact Magnet Drill on the market. Supplied with handles, heavy duty metal guard system, VersaDrive Rapid-Lock adapter, STAKIT Base 200 Case and gravity fed coolant system.

  • CUTTER SIZE RANGE: 12 - 35mm
  • MAX CUTTER CAPACITY: 35mm
  • MAX CUTTER LENGTH: 110mm
  • TWIST DRILL CAPACITY: 12mm
  • COUNTERSINKING: 25mm
  • REAMING: N/A
  • MAX TAP CAPACITY: N/A
  • LENGTH: 220mm
  • WIDTH (Inc Handles): 173mm
  • HEIGHT (Min-Max): 305 - 445mm
  • STROKE: 140mm
  • WEIGHT: 9.5kg
  • MAGNET (L X W): 160 x 80mm
  • MAGNETIC ADHESION: 1000kg
  • MOTOR POWER: 850W
  • TOTAL POWER: 900W
  • SPEED RPM (No Load): 750 min-1
  • SPINDLE: 3/4' Weldon
  • ARBOR: Integral 3/4' Weldon (19.05mm)
  • COOLANT SYSTEM: Gravity Oil Fed
  • WARRANTY: 2 Year (When registered)
