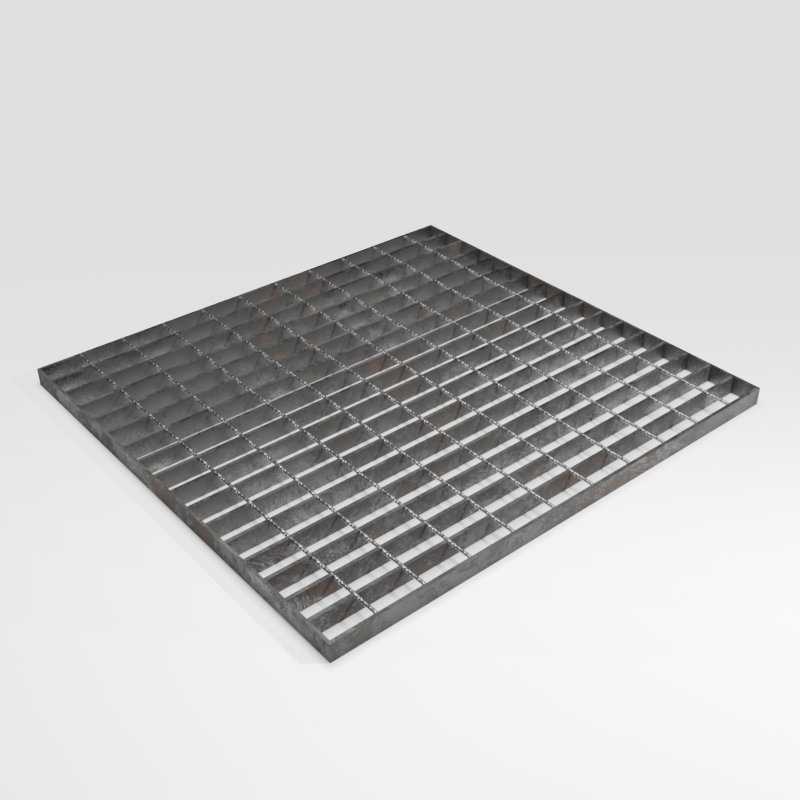

Open Steel Utility Flooring 6000mm x 1000mm (25 x 5 x 41 x 100) - Self Colour
MFOMP-25-5-41/100-PLA-SC
Available
download pdf filesDownloads
check delivery cost
login to save
ask a questionProduct Specifications
Product Description
For demanding industrial or commercial spaces, the Open Steel Utility Flooring 6000 mm x 1000 mm (25 x 5 x 41 x 100) – Self Colour delivers a dependable, hard-wearing surface. Its steel flooring construction provides the load strength required for busy access routes while allowing liquids and debris to pass through freely.
Each panel is manufactured with 6 mm square twisted transverse bars resistance-welded to the top of the load-bearing bars. This design keeps the main bars upright and evenly spaced, ensuring consistent support and reliable weight distribution. The open steel flooring pattern also promotes drainage and reduces cleaning downtime.
Supplied in a natural self colour finish, the panel can be galvanised, painted, or powder coated on site to match project specifications.
Product Highlights
- Heavy-duty steel flooring panel: 6000 mm x 1000 mm, mesh size 25 x 5 x 41 x 100
- Metal mesh floor design provides drainage and slip resistance
- Self colour finish ready for galvanising or coating
- Strong resistance-welded construction for long service life
Typical Applications
- Open steel flooring for walkways, platforms and factory service areas
- Metal mesh floor over shallow trenches or drainage channels
- Protective covers for high-traffic floors in water-treatment works and processing plants
FAQ
What surface preparation is required before installation?
Ensure the supporting steelwork or concrete is level and capable of carrying the expected load. Position fixing clips or welding points accurately to maintain panel alignment.
Which coatings are recommended for outdoor use?
Although supplied in self colour, the panels can be hot-dip galvanised, powder coated or painted to achieve the corrosion protection and finish specified in project plans.
Do the twisted transverse bars add structural strength?
Their main role is to keep the load-bearing bars upright and evenly spaced. The structural capacity is provided primarily by the load-bearing bars themselves.
How does the flooring perform in wet or contaminated areas?
The 41 x 100 mm open mesh pattern allows liquids, dirt and small debris to pass through quickly, reducing slip risks and making cleaning easier.
Is on-site cutting possible without affecting strength?
Yes. Panels can be cut to fit around columns or edges. After cutting, treat or coat all exposed steel to maintain corrosion resistance and meet safety requirements.
What fixing methods are recommended for heavy-duty installations?
Use galvanised clips, saddle clamps or welds specified by the structural engineer. Correct anchoring ensures long-term stability under constant foot or equipment traffic.
