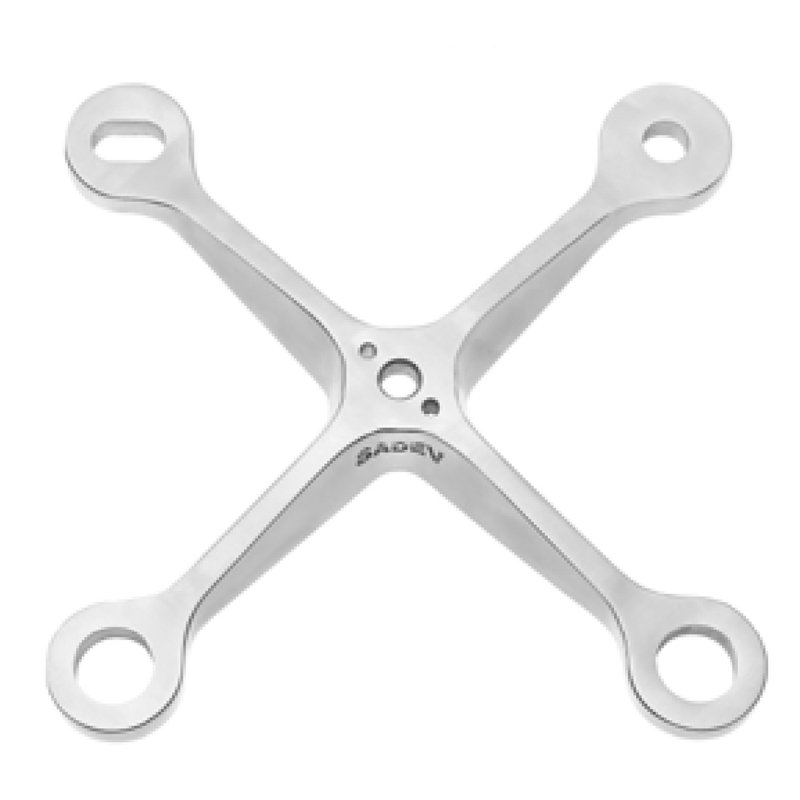

Glass Canopy Spider 4 Arm

MAGSP-S3001 EVO 4 ARM

available Available

Please enter your postcode to check available services:

Check available services

£149.94 inc VAT

Show prices ex VAT

up
down
Product Specifications
Finish
Satin
Grade
Grade 316
Length
102mm
Material
Stainless Steel
Product Description

Application: Double Skin Façade, point fixed facade, curtain wall, solar shading, glass elevator, awnings, canopies, etc.

Fixing on all types of structures (metal, wood, glass…)

Aesthetic and economical model

Validated all seismic zones

Small space requirement

Tested and certified by technical evaluation (test report)

Stainless steel 316

Structural Bolted Glass Fastener

The spiders S3001 EVO combines good mechanical performances and a modern design : This is the S3001 EVO. S3001 EVO, with the brushed standard finish, will provide a seamless design for your upcoming architectural projects, while offering bolted glass system at an affordable price.

Suggested mounting instruction

The drilling diameter for the pins is 6 mm. Do not drill the holes for the pins in your structure before mounting the spiders. The fixing of the spider is done with an M16 or an M12 bolt.

This bolt shall not be fitted into a vertical slotted hole due to the risk of slipping ( under the weight ), the pins are not designed to hold any permanent loads ( cf. specification sheet ). The spider has to be positioned on a flat support. The slotted holes Ø 17×24 mm and free holes Ø 24 mm in the spider are not to be used to adjust the spider. They are needed to absorb the manufacturing tolerances and the thermal deformation of the glass and of the structure. The spiders are standardized for M14 fittings ( FXR, FXV ).

We recommend using a thread locking compound, except in the case of specific mounting constraints.
